Full Automatically High Productivity One Lane Sandwich Biscuit Machine

Name: Full Automatically High Productivity One Lane Sandwich Biscuit Machine
Brand: SKYWIN
Price: 16 USD

Wholesale Full Automatically High Productivity One Lane Sandwich Biscuit Machine from china suppliers

Brand Name : SKYWIN

Certification : CE,ISO

Place of Origin : China

MOQ : 1 Set

Price : $16,000.00 - $20,500.00 / Set

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 5 Set/Sets per Month

Delivery Time : 50 days

Packaging Details : The machine shall be packaged by wooden cases, which are suitable for long distance transportation and seaworthy.

Material : 1.5-2 mm 304 Stainless Steel

Warrantly : 1 year

After-sales service provided : Field maintenance and repair service

Usage : Food Industry Equipment,Biscuit,Sancks,Sancks of Ice Cream Cone Wafer Biscuit Machine

Condition : New

Automatic : PLC Controlled

Package Type : Seaworthy Wooden Case

Application fields : Bakery, Snack food factory

Machinery Test Report : Provided

Video Outgoing-inspection : Provided

Contact Now

Product Description

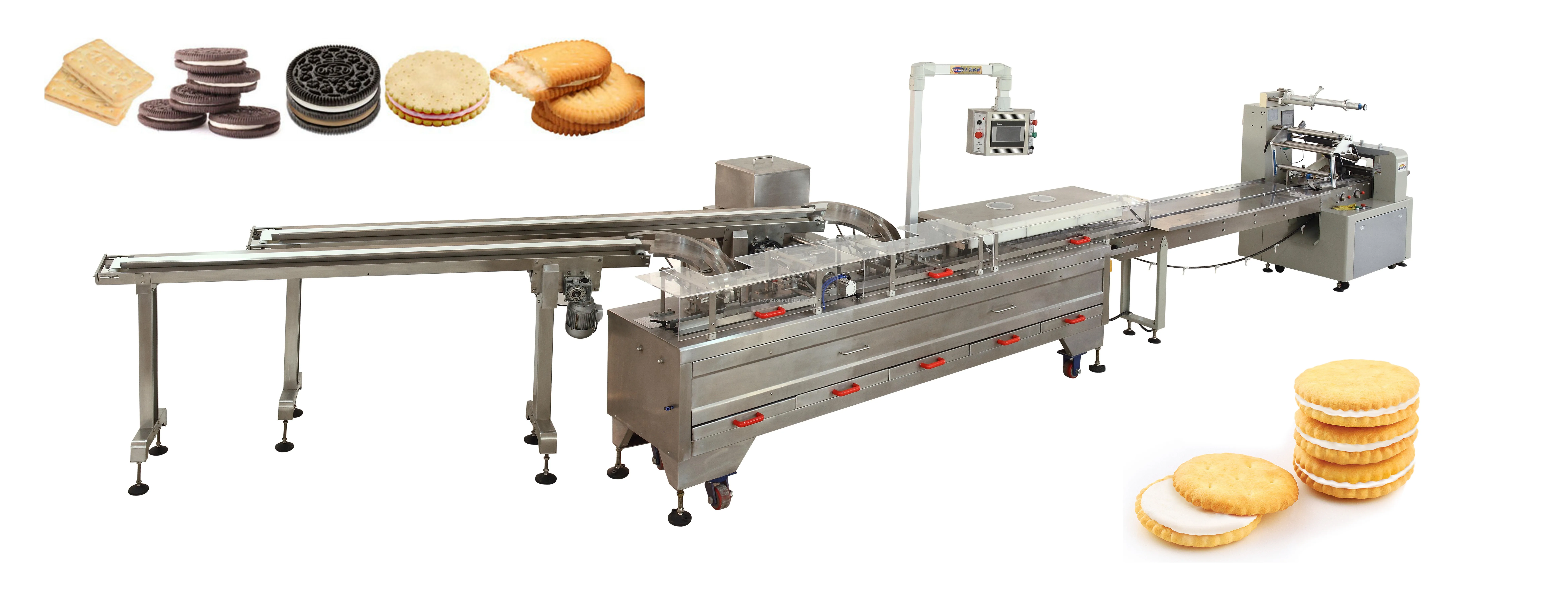

One Lane One Color Sandwiching Biscuit Machine
Connect With SK-380s Flow Pack Packing Machine

Full Automatically High Productivity One Lane Sandwich Biscuit Machine

Skywin provide different kind of biscuit sandwich machines. The biscuit sandwich machine can be filling with chocolate, cream, jam or cheese. It's used for sandwiching for different flavour then transfer to the packing machine automatically. Energy saving and labor saving.

Main Feature

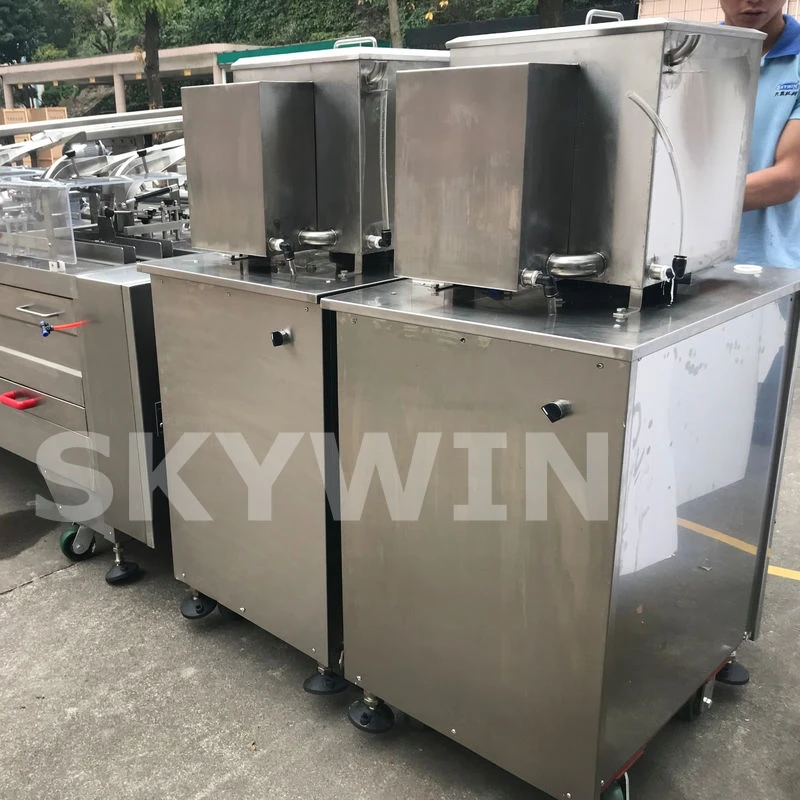

Cream Tanks

1) New Design Double Jacket Cream Tanks for cream or chocolate or jam.

Hand Wheels

2) Adjustable hand wheels for sandwiching row , adjusting size according different biscuit size.

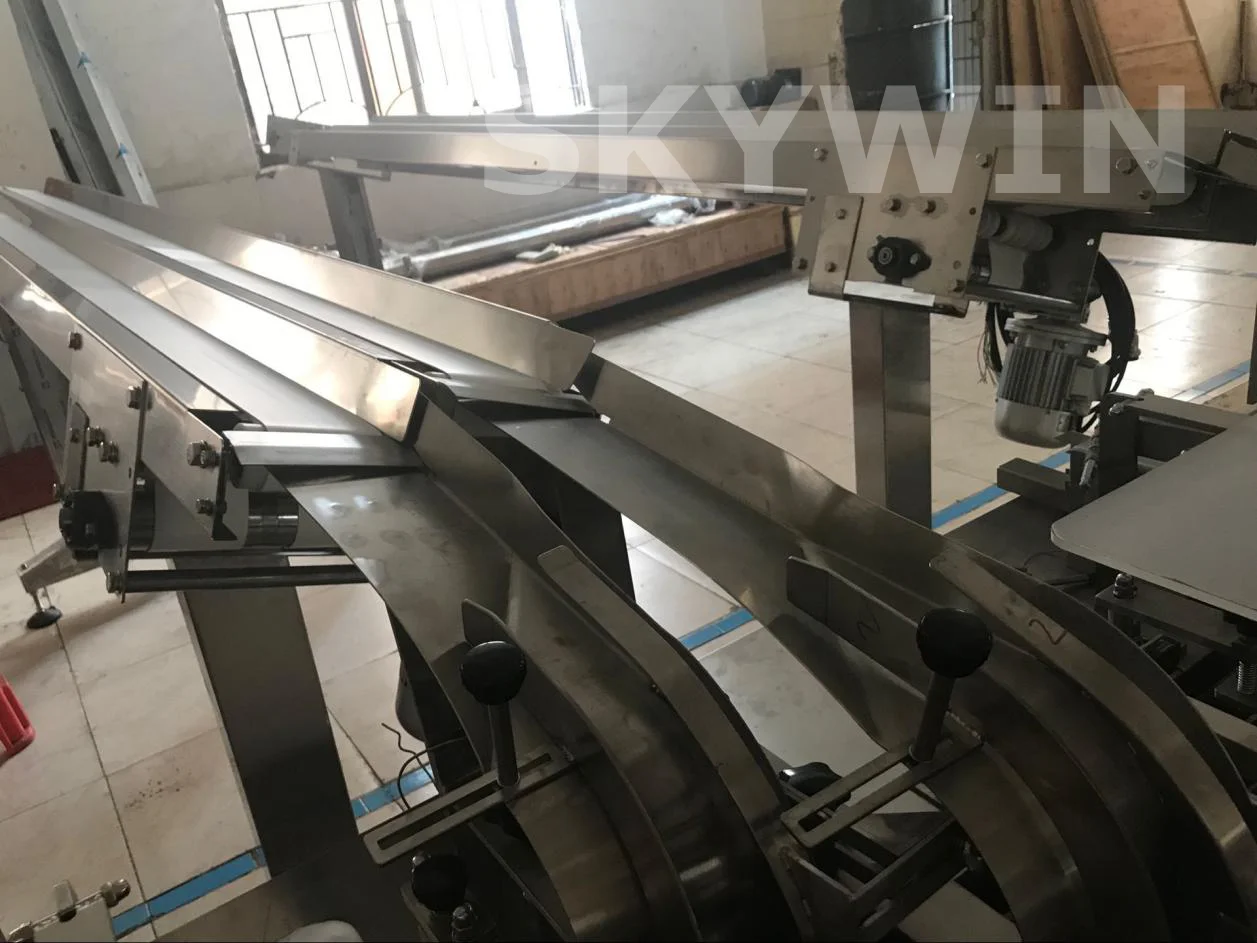

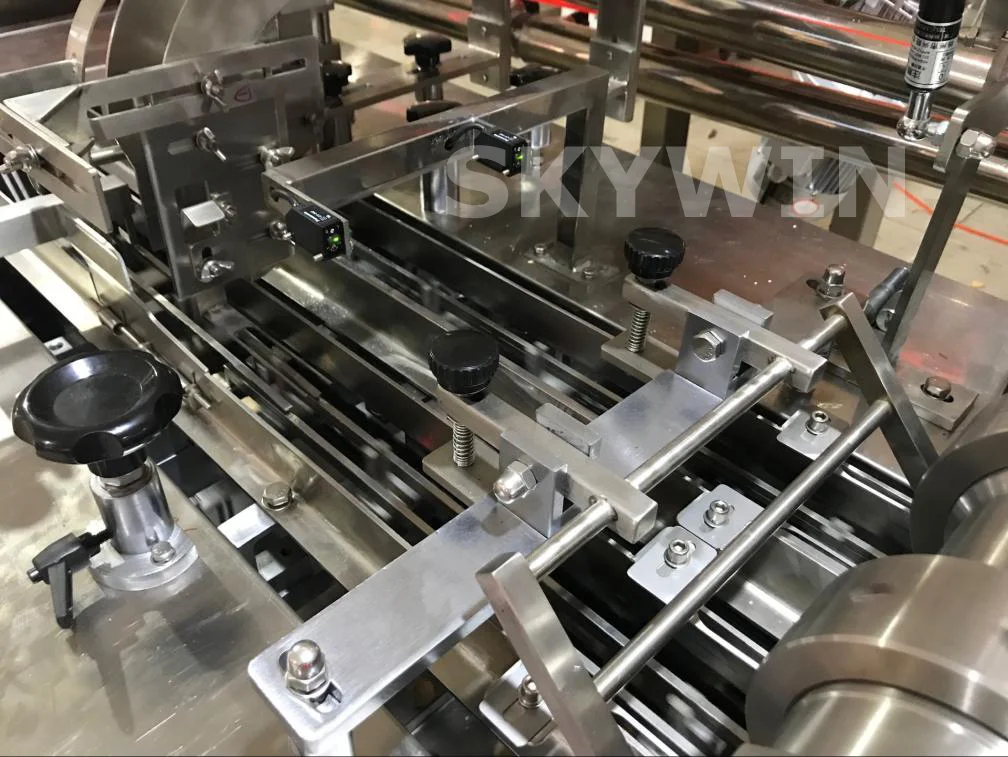

Biscuits Feeder

3) Adjustable Biscuits feeder for different size biscuits.

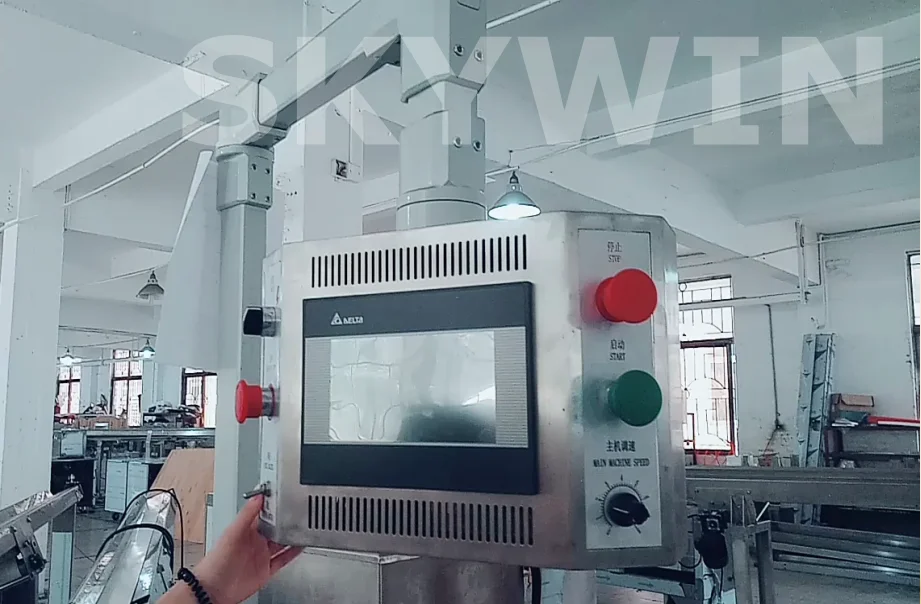

SIEMENS Brand PLC

4) SIEMENS Brand PLC & Touch Screen, can be rotate 360°for easy controlled.

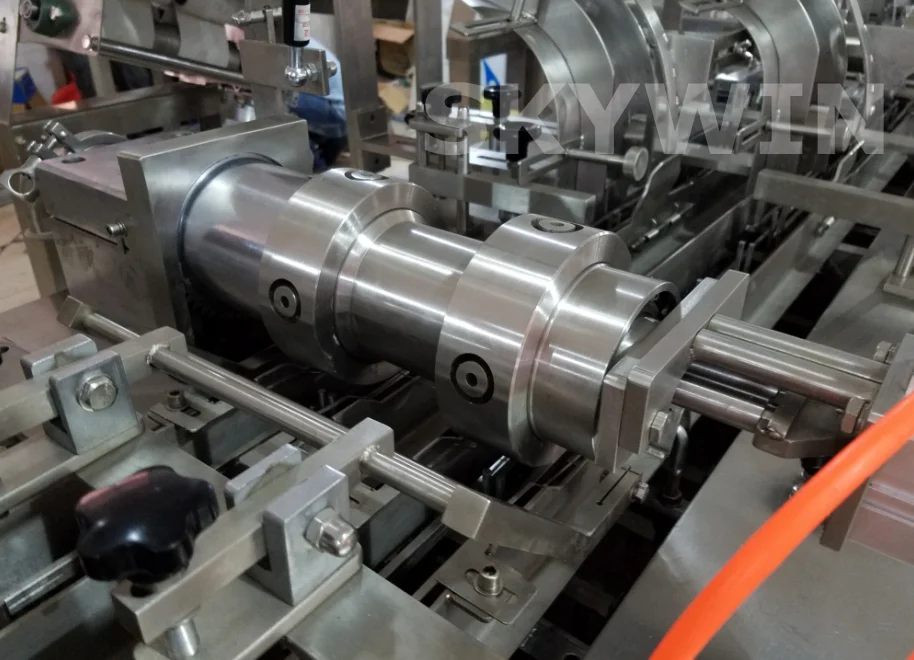

Cream Stencil

5) Cream&Jam One/Two Color Cream Stencil.

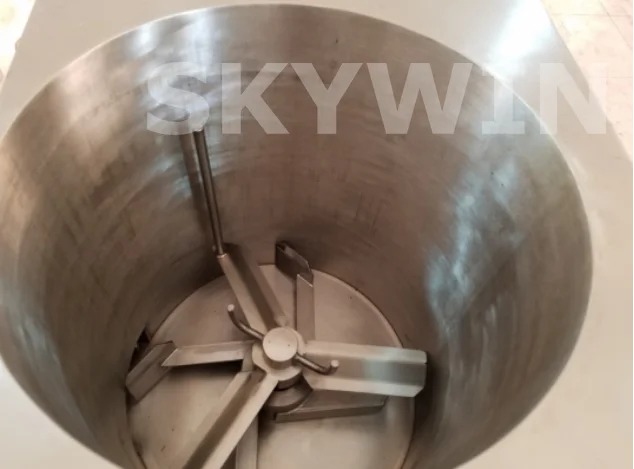

Strong Pusher

6) Cream tanks blade with strong pusher to make sure fast speed sandwiching.

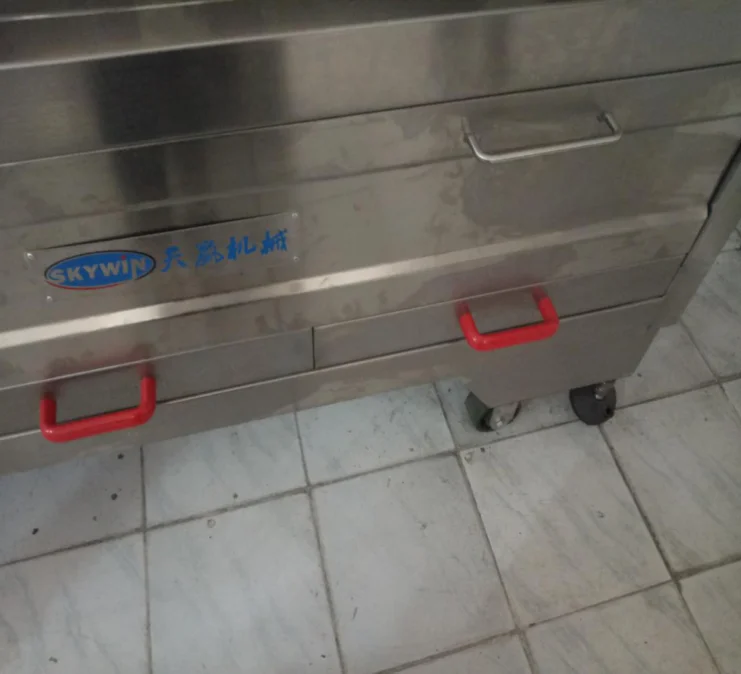

Wheels

7) Four wheels at the bottom,convenient to move the machine.

Collecting Pans

8) Collecting pans to collect the broken biscuit.

Specification

Single Lane Sandwiching Machine
Biscuit size	Square
	L(35-70)x W(30-60)x H(3-8)mm
	Round
	Φ35-70 mm thickness:3-8 mm
Capacity	100-600 sandwiches/min
Operating voltage	single-phase AC 220V 50Hz
Machine size	700019001470 mm
Weight	1120 kgs
SK-380S Flow Packing Machine
Bag length	80-500mm
Bag width	60-160mm
Product height	5-45mm
Film Width	80-370mm
Packing speed(packs/min)	30-350
Machine weight(KG)	450
Machine Size(LxWxHmm)	4000x950x1625
Power supply type	220V 50Hz
Film material	OPP/PE,PVC,OPP/CPP,PT/PE/KOP/CP,Aluminum film
Optional Device	Date Coder / Air-filing Device / Punching Device and etc.

Packing & Delivery

Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
 Step 2: The plastic cushion packing machine (prevent bump).
 Step 3: Plastic film packaging (to prevent ventilation).
 Step 4: Wooden case / frame packaging (easy to transport).
 Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
